ASIST Enterprise allows illicit discharge information to be recorded for the following items:

• Businesses
• Outfalls
• Septic Systems
• Stormwater Facilities

Each module of your software has a Button Bar that provides shortcuts for adding additional information to records displayed in the navigation tree. The buttons on the Button Bar will be inactive until a record is selected in the navigation tree.

Illicit Discharge records can be added to your database in either one of the ways listed below.

• Linked to an inspection record
• Linked directly to a Parent record such as an Outfall or Business

Link an illicit discharge record to the Parent record

1. Open the desired module.

2. Select the desired record from the navigation tree by left-clicking on it.

3. Locate and click the Add Illicit Discharge button on the button bar . When the Illicit Discharge form appears fill in the desired fields.

Link an Illicit Discharge record to an existing inspection record

1. Open the desired module.

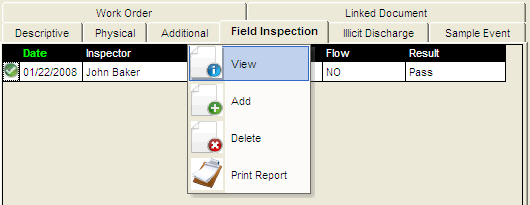

2. Select the desired record from the navigation tree by left-clicking on it and then clicking on the Tab labeled Field Inspection.

3. Right-click on the desired inspection record and select View.

When the inspection form opens you may link an illicit discharge record to it by clicking on the Add Illicit Discharge button located in the Button Bar of the inspection form.
